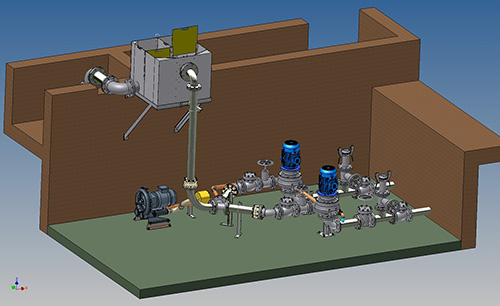

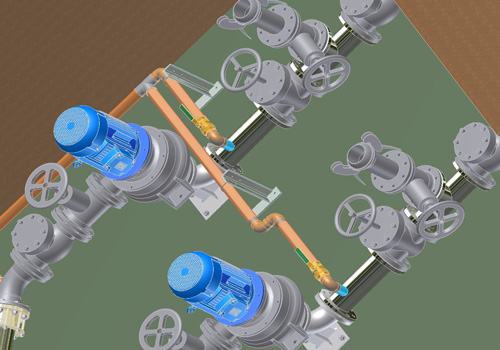

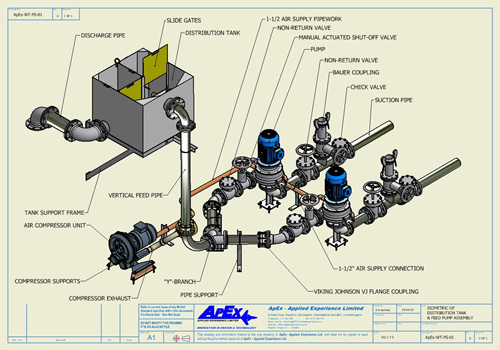

This project was for a Sewage Treatment Pumping and Distribution system. The complete system was designed and detailed by ApEx engineers. The arrangement comprised of duty/standby vortex type pumps, interconnecting pipe work, balancing tank and discharge distribution pipe work. The pump system was complete with compressed air flushing system and alternative tank connections. The complete design model generated an assembly GA with bill of materials and fabrication detail of all components for manufacture.

Pumping System
